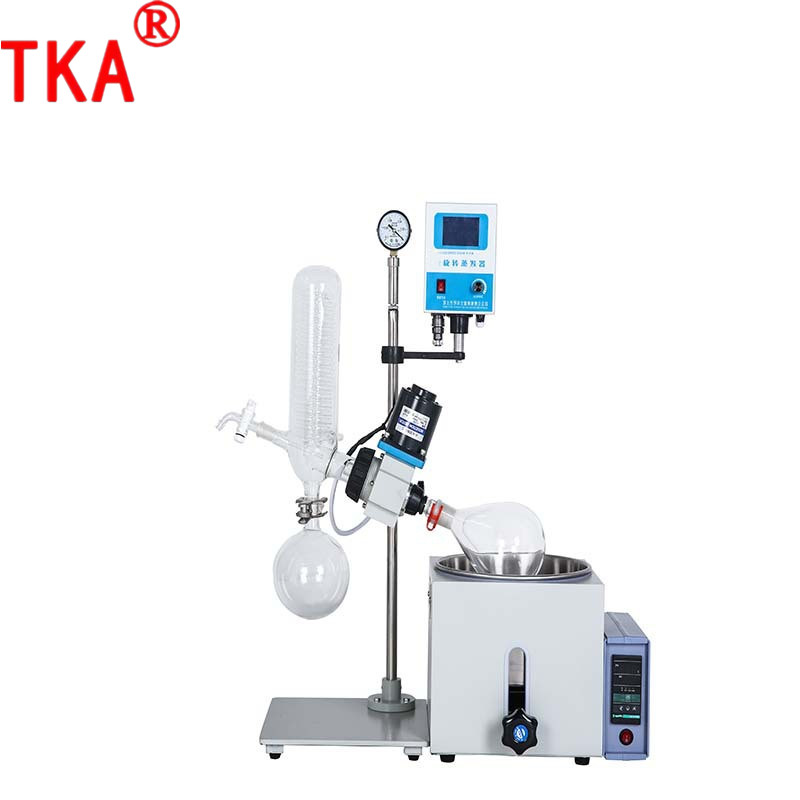

Vacuum Thermal Evaporation Equipment Manual Lifting Labscale Rotary Evaporator with Bath

Short Description:

Rotary evaporators are mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The principle is: under vacuum conditions, constant temperature heating makes the rotary bottle rotate at a constant speed, and the material forms a large-area film on the bottle wall,


Product Detail

Product Tags

Detail

Rotary evaporators are mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The principle is: under vacuum conditions, constant temperature heating makes the rotary bottle rotate at a constant speed, and the material forms a large-area film on the bottle wall, which evaporates efficiently. The evaporation of the solvent is cooled by a high-efficiency glass condenser, recovered and collected in a bottle, which greatly improves the evaporation efficiency, and is especially suitable for the concentration and purification of biological articles that are easily decomposed and denatured at high temperature.

Products Parameter

Spin bottle capacity 1000ml
Collection bottle capacity 500ml
Rotation speed 0-120 rpm (AC stepless speed regulation)
Electric power 40W
Water bath power 1.5KW
Water bath pot lift 120mm
Power supply voltage 220v50Hz/60Hz±10%
Dimensions 800×350×1250 (height) mm
