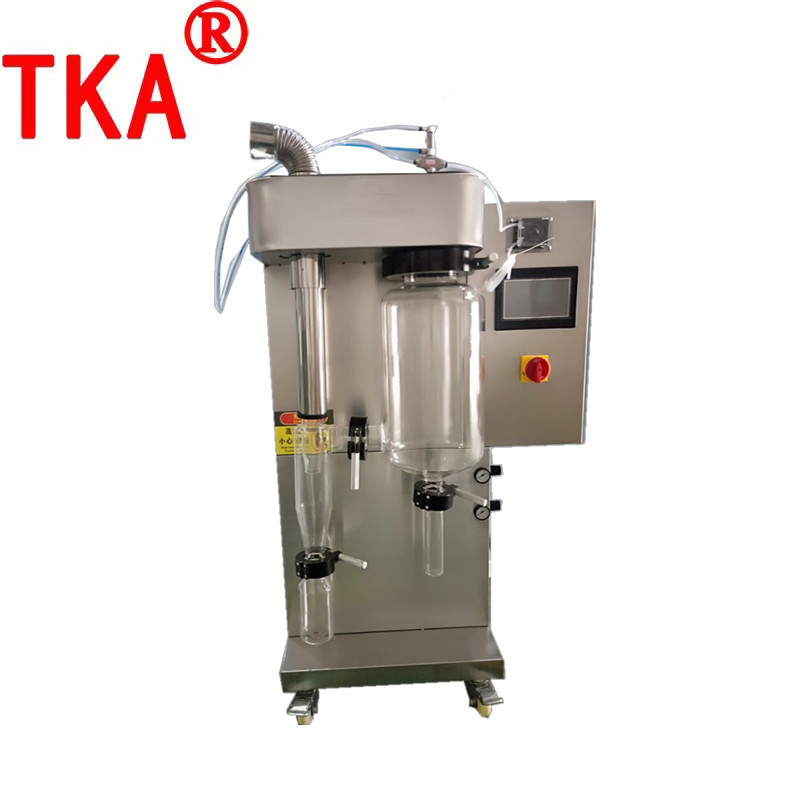

Stainless Steel Type Spray Drying Machine Factory 2L Small Spray Dryer

1. Refined nozzle, high efficiency.
2. Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / needle frequency.
3. Fully automatic control: one-button start-up, after setting the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the running animation is displayed on the touch screen, and the running process is clearly displayed; when the machine is turned off, just press the stop button, the machine is automatically safe Shut down.
4. Manual control: If you need to adjust the process parameters during the experiment, you can easily switch to the manual state, and the entire experiment process is dynamically displayed on the color touch screen (animation).
5. Equipped with a nozzle cleaner (through needle), when the nozzle is blocked, it will be automatically removed, and the frequency of the through needle can be automatically adjusted.
6. Shutdown protection function: Just press the stop button when shutting down, and the machine will stop running immediately except for the fan, to ensure that the heating part of the equipment will not be burned out due to misoperation (forcibly turning off the fan).
7. The spraying, drying and collecting system is made of transparent high-quality borosilicate heat-resistant glass material, so that the drying process can be carried out in a pollution-free environment.
8. Built-in Taiwan Dolphin oil-free air compressor, the particle diameter of the powder is normally distributed, the fluidity is very good, and the noise is very low, less than 60db.
9. The atomization structure of the two-fluid spray, the whole machine is made of high-quality stainless steel material, the design is compact, and no auxiliary equipment is required.
10. The design of drying temperature control adopts real-time regulation PID constant temperature control technology, so that the temperature control in the whole temperature area is accurate, and the heating temperature control accuracy is ±1ºC.
11. In order to keep the sample pure, it is equipped with an air inlet filter.
12. (For benzene, methanol, ethanol and other materials, it is safer to choose a nitrogen gas device)
13. The feeding volume can be adjusted by the feeding peristaltic pump, and the small sample volume can reach 50ml.
14. The particle size of the finished dry powder after drying is relatively uniform, and more than 95% of the dry powder is in the same particle size range.
15. For viscous materials, there is a nozzle cleaner (through needle), which will be automatically removed when the nozzle is blocked, and the frequency of needle through can be automatically adjusted.
16. Innovative tower wall purging device, higher material recovery rate.
