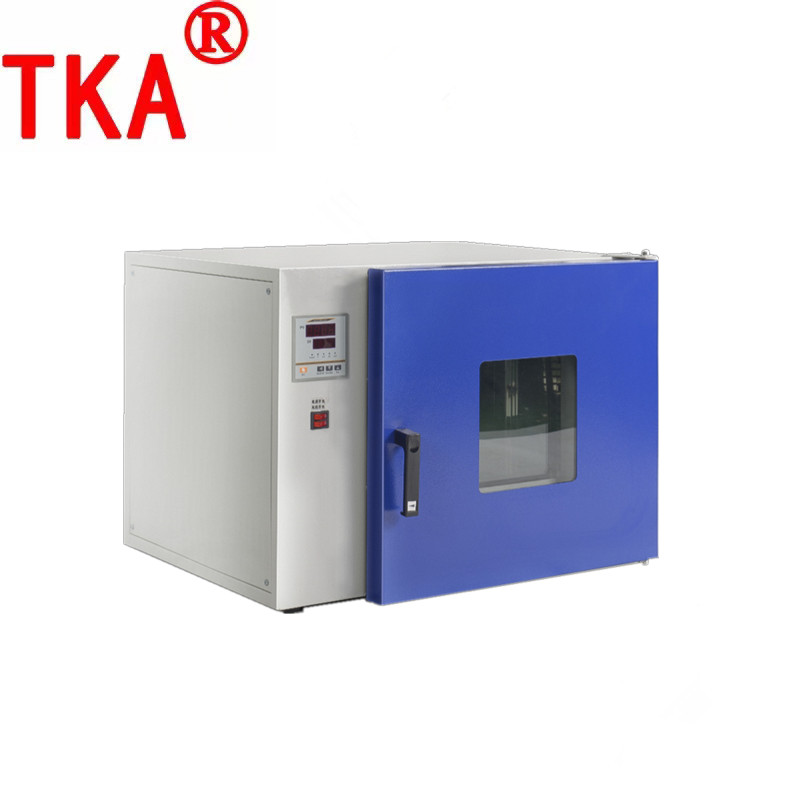

RS-485 Interface Small Laboratory Dry Box Dhg Electric Heating Thermostatic Blast Drying Oven
Feature
1. The box body is made of high-quality steel plate, the surface is plated with high temperature plastic, and the box body is made of stainless steel inner tank.
2. Intelligent PID temperature control, accurate and reliable temperature control, with timing, over-limit deviation alarm, power-off protection and other functions.
3. Optional 99-segment programmable LCD controller.
4. Convenient panel control operation, user can adjust and control at will, easy to use.
5. The new type of silicone rubber sealing strip is adopted, which can operate at high temperature for a long time and has a long service life.
6. Independent temperature limit alarm function, automatic power off when the temperature exceeds the limit, to ensure laboratory safety and avoid accidents.
7. Optional standard RS-485 interface, which is convenient for computer to manage, monitor, and print data of multiple devices.
Parameters
|
Type |
|
Intelligent artificial climate incubator |
|||||
|
TKDHP-050(H) |
TKDHP-080(H) |
TKDHP-150(H) | TKDHP-220(H) | TKDHP-450(H) | TKDHP-640(H) | TKDHP-800(H) | |
|
Power supply and voltage |
220V 50HZ ±10% |
||||||
|
Control temp. |
RT+5ºC-80ºC |
||||||
|
Constand Temp. fluctuation |
±5ºC |
||||||
|
Temp.Uniformity |
≤0.5ºC |
||||||
|
Temp. resolution |
0.1ºC |
||||||
|
Working environment temp. |
RT+5-35ºC |
||||||
|
Consumed power |
1000w |
1500w |
2000w |
2450w |
3500w |
4500w |
5300w |
|
Volume |
50L |
80L |
150L |
220L |
450L |
640L |
800 |
|
Inner dimension(mm) W*D*H |
350*350*420 |
450*400*450 |
550*500*550 |
550*500*820 |
720*700*900 |
800*800*1000 |
560*1000*1600 |
|
Overall dimension(mm) W*D*H |
700*600*510 |
730*610*600 |
650*720*910 | 640*720*1110 | 900*1120*1220 | 1000*1290*1220 | 760*1440*2020 |
|
LoadingBracket(standard) |
2pieces |
3pieces |
|||||
|
Timming range |
1-9999min |
||||||
|
Note |
H type:99 segment programable |
||||||
