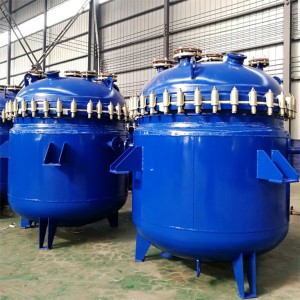

Open K type Glass Lined Chemical Reaction Kettle

Short Description:

Product Detail

Product Tags

Detail

Enamel/glass-lined reaction kettle (reaction tank): It is a chemical equipment in which glass-lined enamel containing high silica is lined on the inner surface of a steel container, and then burned at high temperature to make it firm and evenly adhered to the metal surface. Therefore, the enamel reaction kettle has the dual advantages of glass stability and metal strength, and is an excellent corrosion-resistant chemical equipment. Enamel reaction kettle (enamel reaction tank) glass-lined stirring vessel and other products have been widely used in chemical, pharmaceutical, dye, pesticide, organic synthesis, petroleum, food manufacturing and national defense industry and other industrial production and scientific research in the reaction, evaporation, concentration, Synthesis, extraction, polymerization, saponification, mineralization, chlorination, nitration, etc., to replace expensive stainless steel and non-ferrous metals.

Parameters

Item	Inside the reaction kettle tank			Jacket
	Packing seal	single mechanical seal	Double mechanical seal
Design pressure(Mpa)	0.2	0.4	0.6-1.0	0.6
Design temperature ( °C )	200	200		200
Working temperature ( °C )	0 - 180
High-voltage experiment(KV)	20
Porcelain thickness (mm)	0.8 - 2.0
Resistant to rapid degeneration of temperature difference( °C )	Cold shock 110 thermal shock 120
Applicable medium	Resistant to corrosion of various concentrations of inorganic acids, organic acids, organic solvents and weak bases.
Note	1. Glass lined reaction kettle (tank) whose design pressure exceeds 0.6mpa (i.e. 6kg pressure) should contact our company for special order. 2. There are many types of agitator for users to choose 3. The main size of K series reaction kettle (tank) conforms to HG/T2371-92 standard, and has been improved on this basis. 4. When the working temperature is lower than 0ºC, it should be indicated when ordering.
