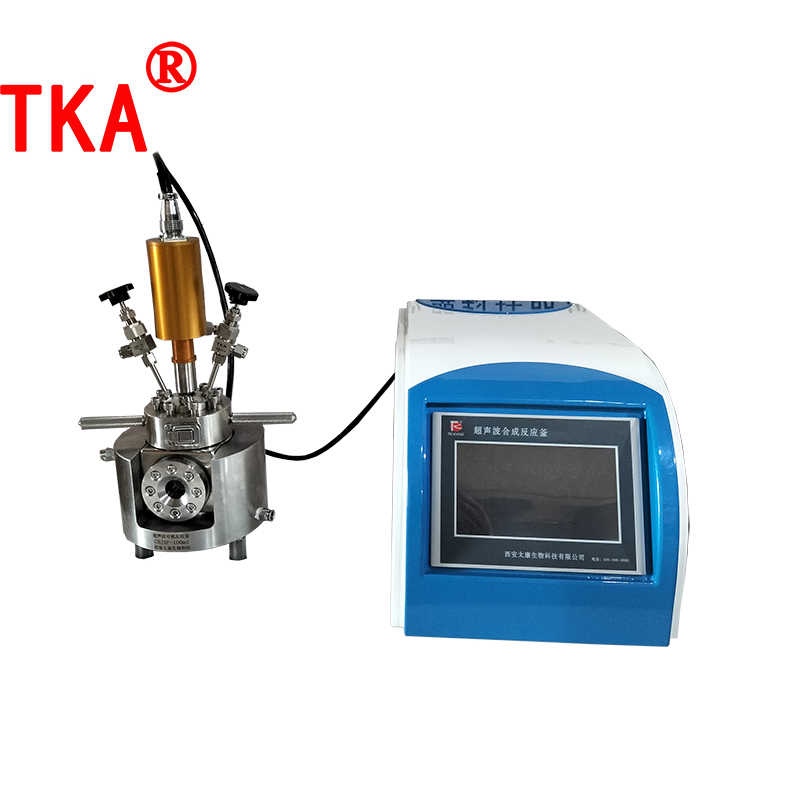

Micro Ultrasonic Synthesis Reactor

Short Description:

Ultrasonic Reactor,Mixing Reactor,Chemical High Pressure Reactor,Stirring Autoclave,Stainless Steel Autoclave,Reaction Kettle Reactor,mixer,reactor,stainless steel tank,chemical equipment,pressure vessel,high pressure reactor,Mixing Reactor,Hydrogenation Reactor,Lab Reactor,Chemical High Pressure Reactor ,Autoclave Reactor ,Stainless Steel Reactor,


Product Detail

Product Tags

Detail

Micro ultrasonic high pressure reactors are widely used in university and enterprise laboratory technology research and small-scale production. It is the first company in China to complete a complete set of reaction equipment that combines a small high-pressure high-temperature reaction vessel with ultrasonic crushing. The successful development of this equipment has filled the domestic vacancy. Realize the ultrasonic extraction operation under high temperature and high pressure (ultrasonic: the temperature can be adjusted from normal temperature to 80ºC, the reaction temperature after ultrasonic can be set arbitrarily from normal temperature to 200ºC, and the ultrasonic frequency is 20KHz.) The ultrasonic high pressure reaction equipment can be widely used in refractory Catalytic reactions, chemical biology, microbiology, physics, zoology, pesticides, Chinese herbal medicines and teaching and scientific research in the field of pharmaceuticals. It can quickly realize extraction, crushing, dispersion, emulsification, suspension, variable aerosol, accelerated chemical reaction at room temperature or high temperature and high pressure, and can be applied to various volatile or non-volatile lysozyme extraction media at the same time. reaction process.

Technical Parameter

Ultrasonic Frequency 20kHz
Ultrasonic Power 150W
Heating power 600watts,Temperature digital display
Stirring method Magematic stirring ,Digital display
Ventilation type online air intake and ventilation
Samply model Sampling online
Ultrasonic model Energy-gathered type
Dispay type Digital display type
Control type Singlechip
Safety pressure 0-10Mpa
Safety relief valve Yes,Accuracy ±1pa
Dimension 450/385/500
Weight 22KG
Power supply 220VC/50Hz
