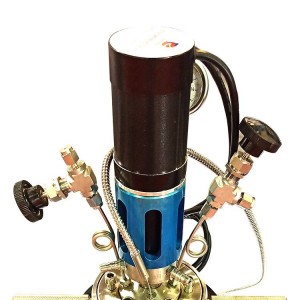

Laboratory Autoclaves with Factory Customization

Short Description:

Mixing Reactor,Chemical High Pressure Reactor,Stirring Autoclave,Stainless Steel Autoclave,Reaction Kettle Reactor,mixer,reactor,stainless steel tank,chemical equipment,pressure vessel,high pressure reactor,Mixing Reactor,Hydrogenation Reactor,Lab Reactor,Chemical High Pressure Reactor ,Autoclave Reactor ,Stainless Steel Reactor


Product Detail

Product Tags

Detail

It is suitable for photochemical high-pressure reactions such as CO2 CO2 reduction, CO2 CO2 reduction to methanol, CO2 CO2 reduction to methane CH4, NOx reduction and degradation, high-pressure photocatalytic degradation of formaldehyde, and so on. Photocatalytic reactions, Fischer-Tropsch reactions, hydrogenation reactions, polymerisation reactions, homogeneous reactions, and CO2 supercritical reactions are all examples of chemical reactions. A national patent, patent number 201003127547.0, has been granted to the product.

Technical Parameter

Material Stainless steel 316L/ Pure Titanium/Hastelloy (optional)
Operating temperature 250ºC/350ºC(optional)
Operating voltage 10MPa/20MPA(optional)
Valve and conection material SU316L material
Reactor liner container: teflon inner sleeve easy to clean
Transparent window material: Using polished JGS2 quartz glass (pressure window) or sapphire mirror
Diameter  Transparent window 30mm-60mm (optional)
Stirring speed 0-1500RPM
Revoving speed accuracy ±5RPM
Supply power 220V,50HZ
Stirring power 25W-100W
Heated power 300W-1000W
Thermal insulation layer Aluminum silicate cotton vacuum shaping environmental protection insulation body
nsulating layer Alkali free glass fiber is used
Working time Continuous work for 96 hours at a time
Max pressure 10Mpa
Min pressure 1Pa
Valve fittings are European standard, interfaces are standard configuration. Ball valve can be connected with inert gas bottle, inert protection experimental reaction, reactants do not directly contact with the air.
