Overview
Vacuum degree controller is a high precision vacuum controller developed by our company. The instrument uses an imported anti-corrosion pressure sensor and a high-sensitivity solenoid valve for high-precision control of the vacuum. It can be equipped with rotary evaporator, rectification, reaction kettle, etc. of various manufacturers for the concentration of vacuum and equipment for vacuum control. When the vacuum is not suitable, the reagent will suddenly boil and bump. By using this fully automatic vacuum controller, it can be connected in series with the rotary evaporator to obtain the ideal vacuum inside the rotary evaporator. Especially for the concentration of volatile reagents, the most optimal recovery rate can be obtained.
Overview
|
Vacuum Controller
|
| Model |
TK-VC-4000 |
TK-VC-5000 |
| Performances
|
Pressure testing range |
0~760mmHg,0~1000hPa(mbar) |
| Testing accuracy |
5mbar=500pa |
| Control accuracy |
1~10mbar |
| Functions |
Display item |

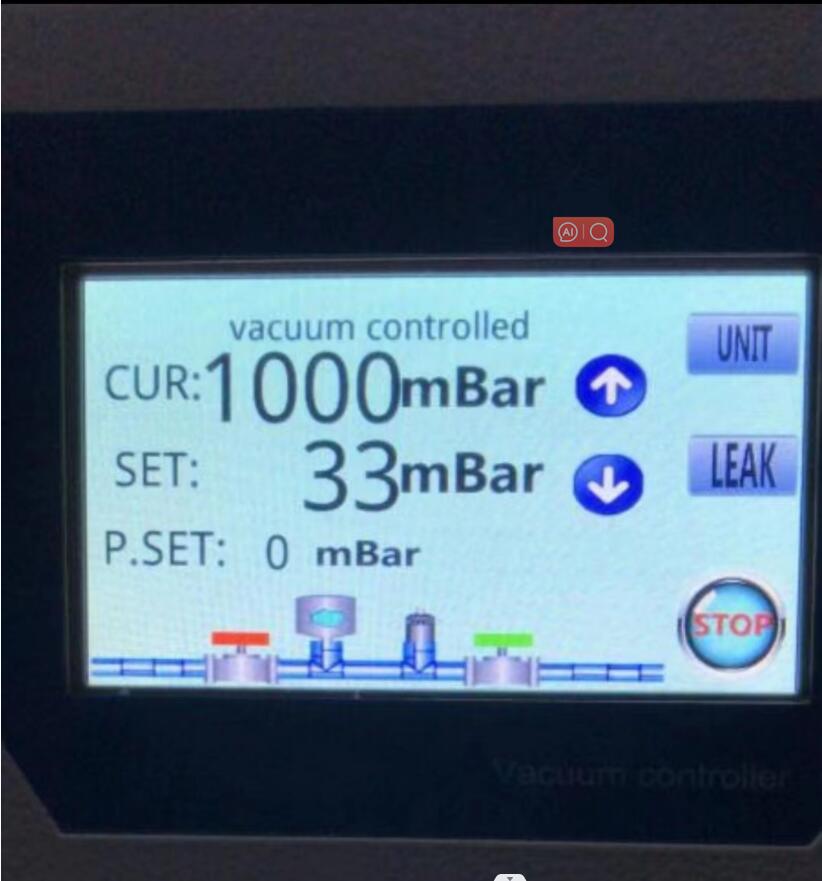

LCD touch screen,Current pressure display
Setting pressure display |
| Release vacuum |
One-click release vacuum |
| Other Functions |
NA |
Controls the opening and closing of the vacuum pump.It can carry out 5-stage gradient program control,andgradually control the vacuum degree during synthesizing.experimental chromatographic vacuum dstillation. (Arrangement and operation of time and vacuum |
| Composition
|
Pressure sensor |
Pressure resistant and corrosion resistant semiconductor pressure probe. |
| Electromagnetic valve |
Made in China |
Made in China/imported |
| Piping materialInterface calibre |
acid and alkali resistant.∅8mm. |
| Use ambient temperature |
5~35℃ |
| Dimemsions (mm) |
130Wx140Dx85H |
130Wx170Dx100H |
| Voltage |
220V Export type 110V |
|
