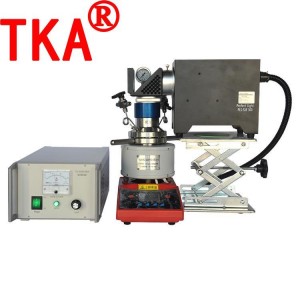

Lab Micro High Pressure Photochemical Reactor
Detail
When this product is used for chemical and chemical high-pressure synthesis or catalytic reaction, it is necessary to measure the temperature, measure the rotational speed, add inert gas, stabilize the pressure and realize the required experimental environment such as online sampling at the same time.
Feature
1. The entire reaction process can be observed during the reaction.
2. The observation window adopts JGS2 high transmittance quartz glass to realize online photochemical reaction under high pressure.
Application examples: It is suitable for photochemical high pressure reaction, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to methanol, carbon dioxide CO2 reduction to methane CH4, reduction and degradation of nitrogen oxides NOx, high pressure photocatalytic degradation of formaldehyde and other fields. Photocatalytic reaction, Fischer-Tropsch reaction, hydrogenation reaction, polymerization reaction, homogeneous reaction and carbon dioxide supercritical reaction, etc.
The product has obtained the national patent, patent number: 201003127547.0
Technical Parameter
| Mode | Size | Volume | Connection Type |
| WCGF-25ML | Φ40*60 | 25ml | Screw thread |
| WCGF-50ML | Φ60*80 | 50ml | Flange |
| WCGF-100ML | Φ80*120 | 100m | Flange |
| WCGF-200ML | Φ80*140 | 200ml | Flange |
| WCGF-500ML | Φ100*240 | 500ml | Flange |
| Volume | 25ml,50ml,100ml,200ml,500ml | ||
| Operating Temperature | 250ºC/350ºC | ||
| Operating Pressure | 10MPa/20MPA | ||
| Valve and Connection Material | SUL 316L | ||
| Optical window diameter | 30mm-60mm | ||
| Revolving speed accuracy | ±5RPM | ||
| Power supply | 220V,50HZ | ||
| Stirring power | 25W-100W | ||
| Heating power | 300W-1000W | ||
| Insulating layer material | Alkali - free glass fiber, insulation coefficient | ||
| Relative humidity | ≤35%≥500Ghz | ||
| Working time | Continuous work for 96 hours in a time. | ||
| Material | Stainless steel 316L/ Pure titanium/Hastelloy material .can be customized | ||
| Reactor Liner | Teflon flexible inner sleeve is easy to clean | ||
| Optical window material | Adopt polished JGS2 quartz glass (pressure window) or sapphire mirror | ||
