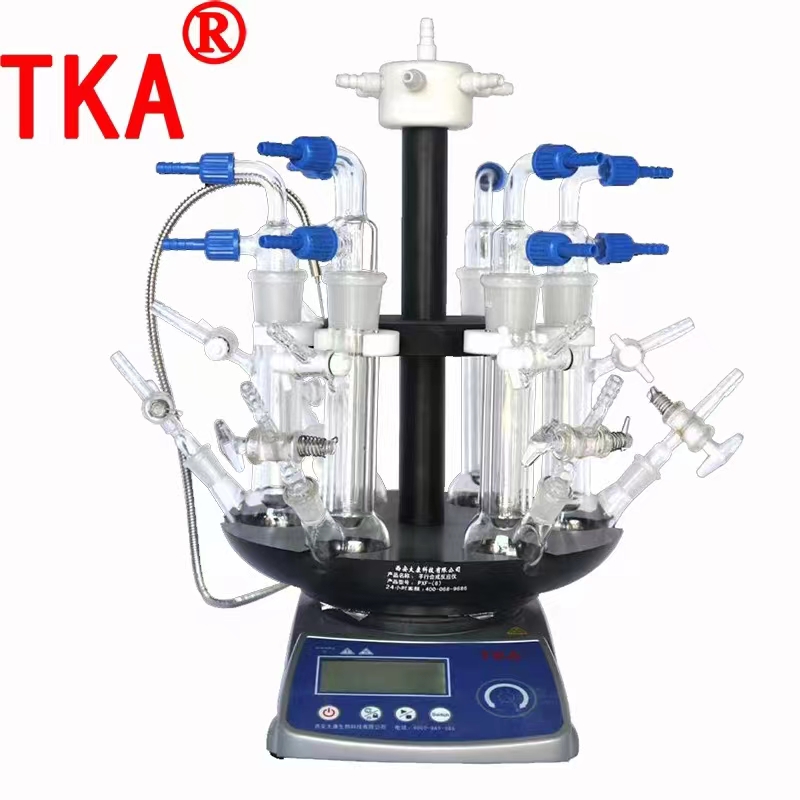

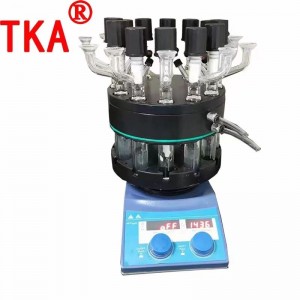

Lab Chemical Glass Parallel Bioreactor
Detail
Abbreviated as ‘Rehabilitation’, it is a new type of reaction synthesis scientific research instrument that combines the basic principles of synthetic chemistry and the concept of combinatorial chemistry.The parallel synthesizer, parallel reactor, parallel synthesizer, organic synthesis device and parallel reaction workstation are all other terms of this kind of instrument. It is one of the necessary equipment for the exploration of reaction routes, optimization of conditions and efficient synthesis in the research and development of modern synthetic chemistry. The Almighty King Parallel Reactor greatly improves the function of this type of instrument, expands the application range of this type of instrument, improves work efficiency and saves experimental time. The parallel reaction instrument is suitable for modern reaction synthesis scientific research with strict requirements on anhydrous, oxygen-free and air tightness of the system, wide temperature control range, accurate temperature control accuracy, strict reaction safety requirements, high scientific research efficiency requirements and good repeatability requirements.
Products Parameter
| Model | PXF-6/PXF-8/PXF-10/PXF-12 | Type | Parallel Synthesis Reactor Device |
| Main Engine | RCT Imported from Germany | Reactor | 6 or 8 or 10 12 quartz glass tubes |
| Condensor | 6pcs, 8pcs, 10pcs, 12pcs Condensation Refrigerator JGS2 Quartz Glass | Module | 6 holes, 8 holes, 10 holes, 12 heating and cooling modules |
| Sensor | PT1000 Imported from Germany | Circulation Nozzle | ABS Plastic 12Pieces |
| Low Temperature Joint | 2pieces 316L Stainless steel | Gas shunt | 12 tetrafluoroethylene six-way gas divider |
| F4 Tray | Teflon six-hole stabilization tray | F4 Valve | 12pieces ETFE valve |
| Power | 800（w） | Volume | 25ml/50ml*12pieces |
| Stirring Speed | 1500（RPM） | Size | 365×400×480（mm） |
| High Temperature | 250℃ | Low Temperature | -20℃ |
| Weight | 12（kg） | Application scope | Parallel reaction without water and oxygen can be regarded as one of the necessary equipment for reaction route exploration, condition optimization and efficient synthesis in modern synthetic chemistry research |
Functional Introdaucion
1.12pieces reaction test tubes can be used for synthesis reaction, reflux extraction reaction, inert gas condition reaction, in-situ distillation concentration reaction, anhydrous and anoxic experiments, etc. under the same or different conditions.
2.The reaction conditions were arbitrarily set from -20℃to＋150℃,the Control accuracy is 1℃.
3.The reaction platform arbitrarily vibration function:equipped with IKA imported magnetic stirrer,0-1500rpm whirling vibration,touch the button to adjust the speed at will.
4.Indenpendently sealed bottle cap design will not cause cross-contamination,and reagents can de added to the tube in a sealed state.12pieces condensers are directly inserted into the reactor,and the cooling effect is good and interchangable.
5.Control temperature mode:High temperature adopts PID control heating constant digital display、temperature control accuracy±1℃。Low temperature adopts circulating pipeline cooling and cooling mode、the temperature control accuracy is ±3℃.
6.The 12 pieces hole self-assembly heating module ensures that the maximums
temperature different of the same mode is 0. 5℃。
7.Power supply voltage :220V/50HZ Machine power:800W
8.Instrument dimensions: 365×400×480(mm) Net weight:12Kg
