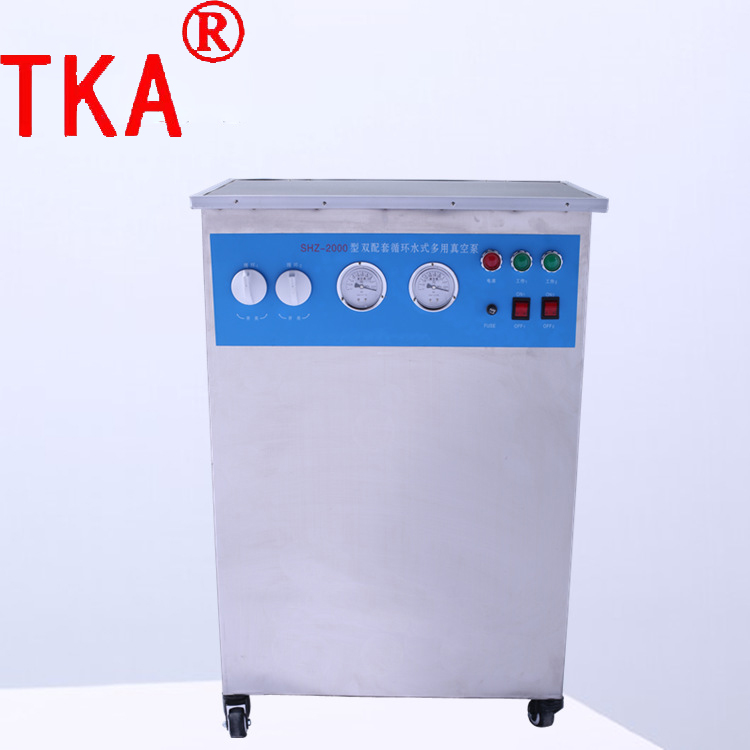

Circulating Water Muti-Usage Vauum Pump
Detais
This pump is a new type of pump with all stainless steel, double movement and ten pumping heads, which is improved on the basis of SHZ-C type all stainless steel five pumping heads multi-purpose vacuum pump. The pump can be used as a single machine (five pumping heads) and as a double machine (ten pumping heads), which has the advantages of being multi-purpose.
Features
(1) Multi-pipe operation in one machine, with ten sets of extraction heads that can be used individually or in parallel.
(2) Corrosion resistant, non-polluting, long life.
(3) The pump is made of all stainless steel.
Parameters
| Power | 370W*2 |
| Power supply | 220v/50Hz |
| Flow(L/min) | 80L/min*2 |
| Lift(H) | 12M |
| Material | 1Cr18 |
| Max vacuum(Mpa) | 0.098Mpa |
| Single tap exhaustion | 10L/min |
| Number of volume | 10 |
| Water storagem tank volume | 60L |
| Overall dimensions(mm) | 450×340×830 |
| Total Weight | 37Kg |
