30L Glass Vacuum Filter
Detail

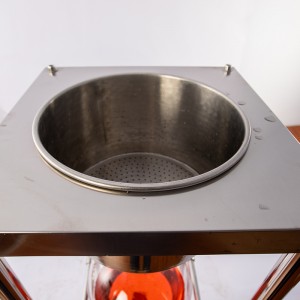

It is suitable for the filtration of medium and small quantities of material in the laboratory. The material is filtered through the micro aperture of the stainless steel funnel at the top and then enters the storage bottle.
Product Feature
The whole machine is made of high quality 304 stainless steel and has universal castors, with good anti-corrosion performance.
The bottle glass is made of GG-17 high borosilicate glass (thermal expansion coefficient (3.3±0.1)×10-6/K-1, silica content over 80%), with good physical and chemical properties.
The funnel and the body are sealed by a composite connection, which is suitable for all kinds of materials and durable.
Product Parameter
|
Item Name |
Parameter configuration |
|
|
Overall size |
L*D*H(mm) |
480*480*1300 |
|
Funnel |
Funnel material |
304 stainless steel |
|
|
Funnel size(mm) |
Φ350*220 |
|
Liquid storage bottles
|
Filter Port |
φ80 Flange port |
|
Liquid storage bottle volume(L) |
30 |
|
|
Liquid storage bottles material |
GG-17 High borosilicate glass |
|
|
Extraction port size |
#16 Standard port |
|
|
Bottom valve |
Glass discharge valveφ80 flange valve |
|
|
Discharge height |
≥280 |
|
Produt Details
Structure
