Lab 25ml-1000ml Stainless Steel High Pressure High Temperature Chemical Electric Heating Reactor Mechanical Stirred
Product Detail
This product is used for chemical, chemical high-pressure synthesis or catalytic reaction, need to simultaneously determine the temperature, determine the rotational speed and add inert gases, calibration pressure and online sampling requirements of the experimental environment.
Technical Highlights:
1. Observe the whole reaction process.
2. The observation window is made of JGS2 high transmittance quartz glass, which can realise on-line photochemical reaction under high pressure.
Application Examples:
It is suitable for photochemical high-pressure reaction, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to methanol.
CO2 reduction to methane CH4, NOx reduction and degradation, high pressure photocatalytic degradation of formaldehyde.
NOx reduction and degradation, high-pressure photocatalytic degradation of formaldehyde, etc. Photocatalytic reaction, Fischer-Tropsch reaction, hydrogenation reaction, polymerisation reaction, homogeneous reaction and CO2 supercritical reaction, etc.
Products Parameter
|
Volume |
100ml |
|
Material |
UL316L |
|
Working pressure |
≤12.5MPa |
|
Valve and connectionmaterial |
SU316L |
|
Reactor chamber |
fully encapsulated in PTFE |
|
Temperature Range |
0-300ºC |
|
Evaporatingrange |
0-1200 rpm |
|
Safe pressure |
12.5Mpa |
|
Pipe outer diameter |
3mm |
|
Wall thickness |
1mm |
|
Stirring power |
100W |
|
Room temperature |
280 °C |
|
Temperature control accuracy |
<±0.5 °C |
| The kettle cover is distributed as two gas channels and one liquid sampling, one for safe pressure relief, one for pressure display, and one for temperature measurement in the kettle. | |
| The whole device is equipped with a set of special hydrogenation and inflation hoses for high-pressure hydrogen cylinders. | |

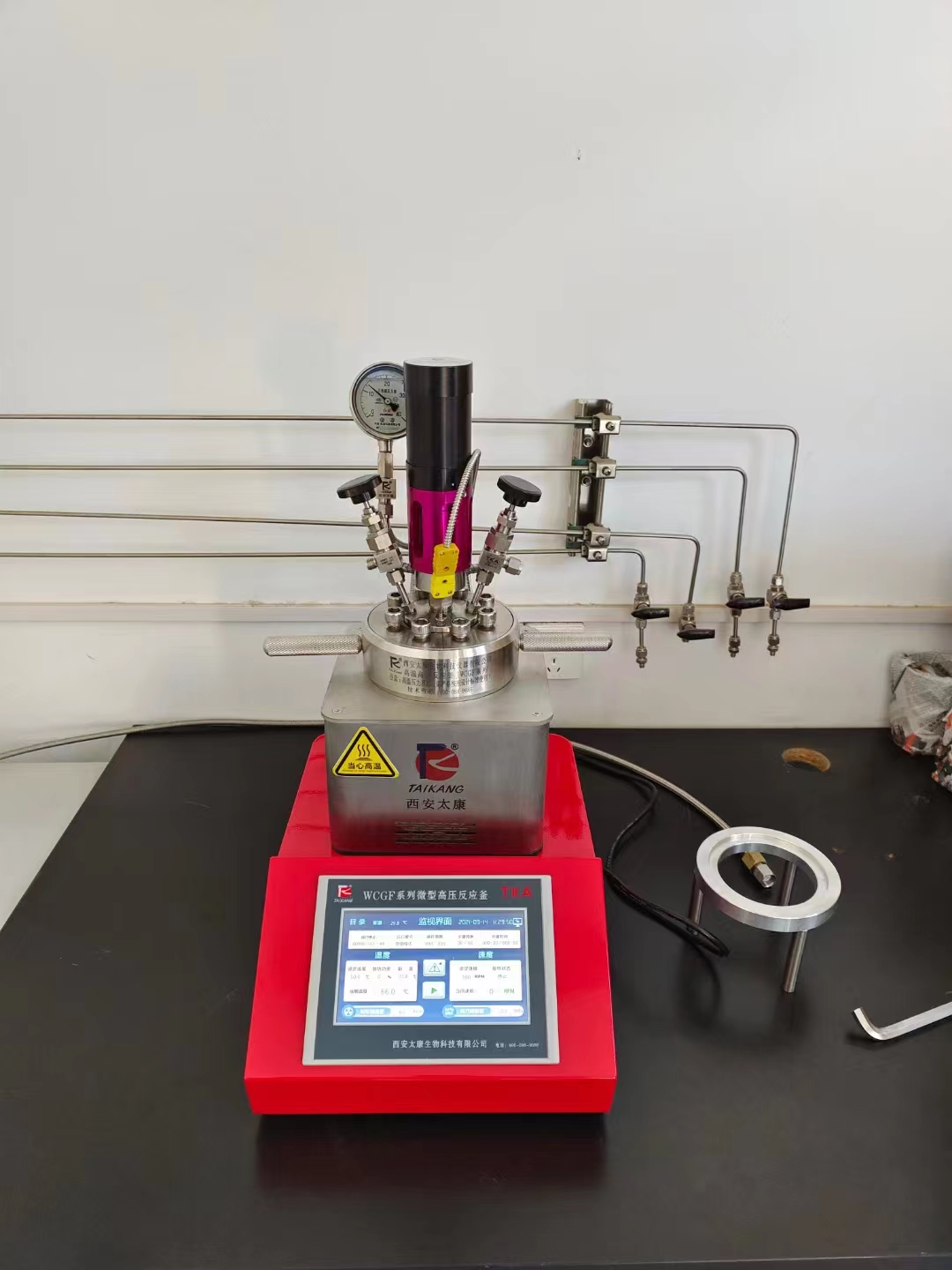

Products Structure
