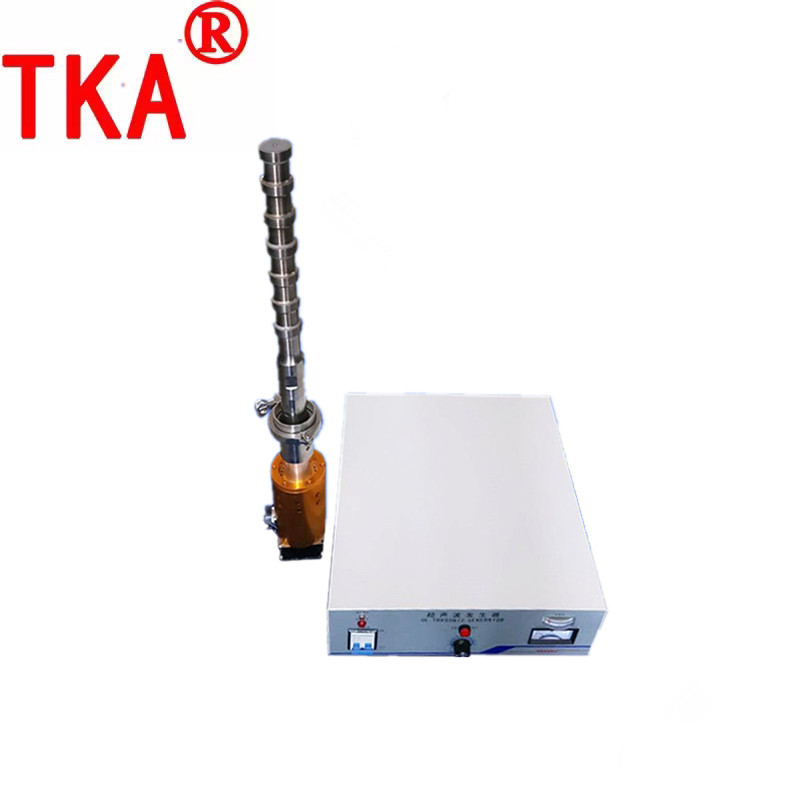

20-25kHz 3000W 220V High Efficiency Ultrasonic Extractor From Herbs
Detail

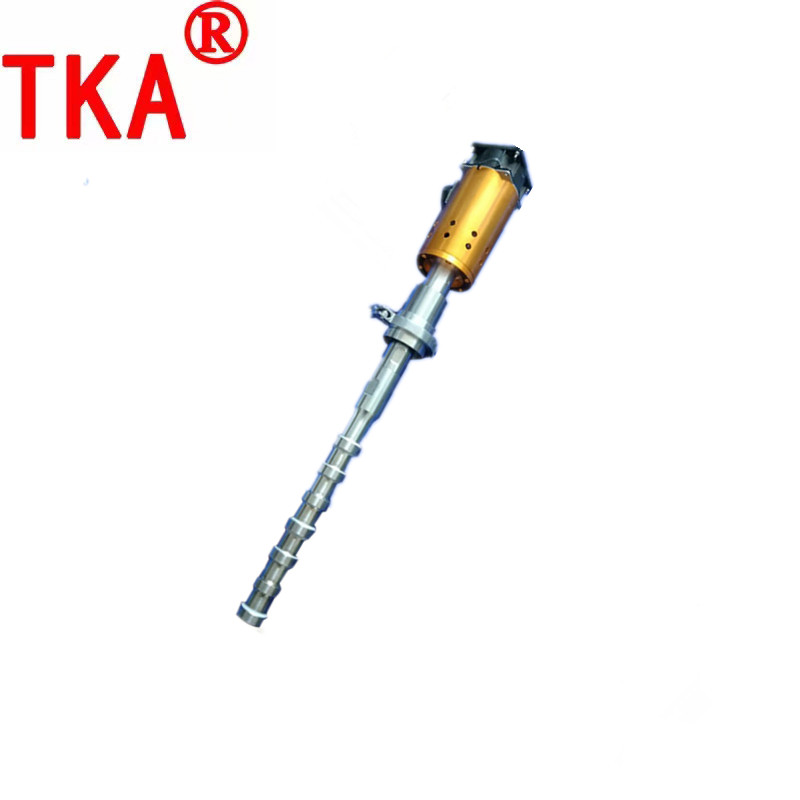

The ultrasonic vibrating rod uses the alternating period of positive and negative pressure in the transmission process of ultrasonic waves. In the positive phase, the medium molecules are squeezed and the original density of the medium is increased. In the negative phase, the medium molecules are sparse. discrete, the density of the medium decreases. The ultrasonic vibrating rod can generate ultrasonic waves evenly around 360 degrees, and the output of energy is not affected by load changes such as liquid level and temperature difference.
Parameters
Model Numdel |
TK-CB-I |
TK-CB-II |
TK-CB-III |
Power Control |
0-100% Can be Adjusted |
0-100% Can be Adjusted |
0-100% Can be Adjusted |
Operating Frequency |
20-25KHz |
20-25KHz |
20-25KHz |
Working Voltage |
AC220V/50Hz |
AC220V/50Hz |
AC220V/50Hz |
Max Output Current |
2.5A |
3A |
3.5A |
Ultrasonic Power |
2500W |
3000W |
3500W |
Invironment Temp. |
0-70ºC |
0-70ºC |
0-70ºC |
Material |
Titanium Alloy |
Titanium Alloy |
Titanium Alloy |
Rod Diameter |
40mm |
40mm |
40mm |
Rod Length |
135mm |
250mm |
370mm |
Net Weight |
12KG |
12KG |
12KG |
Overall Dimensions |
370X420X140mm |
370X420X140mm |
370X420X140mm |
