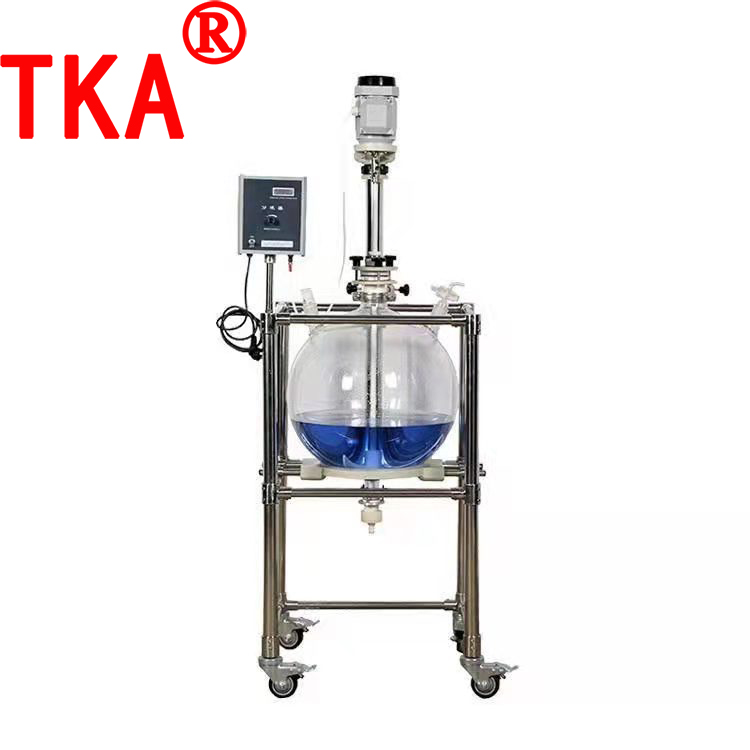

10L,20L30L,50L Industrial Vacuum Stainless Steel Filter
Feature
1. The suction filter bottle is made of GG17 high borosilicate glass material.
2. Stainless steel Buchner funnel, spherical suction filter bottle.
3. PTFE bottom discharge shut-off valve, corrosion-resistant.
4. The frame is made of 304 stainless steel and has casters for easy movement.
5. It can work under normal pressure and vacuum conditions, and the vacuum degree in static state can reach below 0.095MPa.
Advantage
1. The suction filter bottle is made of GG17 high borosilicate glass material, which has excellent chemical and physical properties.
2. Stainless steel Buchner funnel has excellent physical and chemical properties.
3. The stirring plug is designed with special PTFE material, the technology is perfect, and the corrosion resistance is extremely cost-effective.
4. The lower discharge part is equipped with a specially designed PTFE valve for the glass flange mouth. There is no dead angle in the container, and it can be disassembled to facilitate the discharge of solid materials.
5. The whole machine has perfect sealing performance, and the negative pressure can reach below 0.095MPa in static state.
Parameter
|
Model |
Filter Bottle MouthSize and Volume |
Filter Material and Size |
Sealing Material and Size |
|
TK-ZF-10L |
∅80X50(10L) |
(304)∅350X220 |
∅80PTFE |
|
TK-ZF-20L |
∅80X50(20L) |
(304)∅400X240 |
∅80PTFE |
|
TK-ZF-30L |
∅80X50(30L) |
(304)∅400X240 |
∅80PTFE |
|
TK-ZF-50L |
∅80X50(50L) |
(304)∅450X260 |
∅80PTFE |
